Door Trim Disassembly/Assembly: Notes

Disassemble in the order indicated in the table.

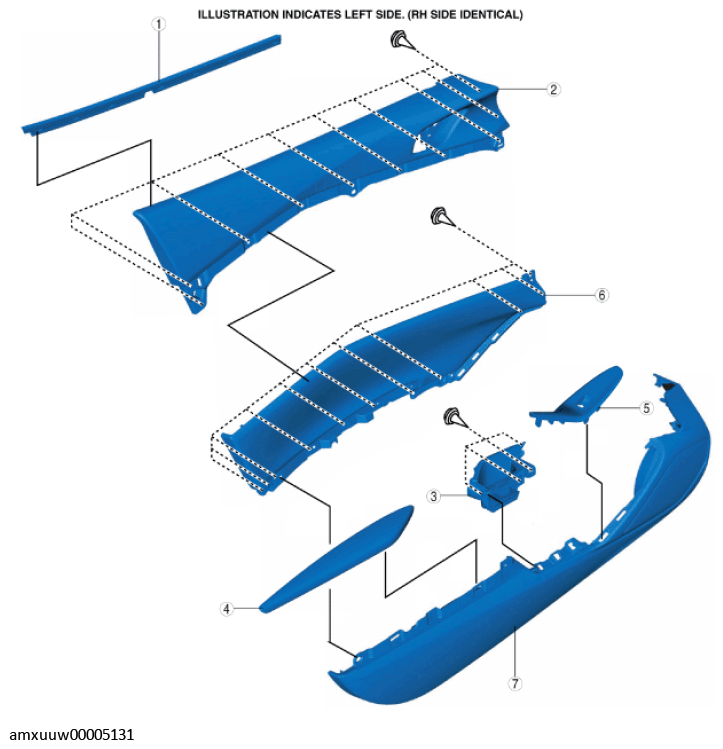

Fig 1: Exploded View Of Door Trim Assembly

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Weatherstrip
2	Upper frame
3	Recess
4	Armrest
5	Switch panel (See Switch Panel Installation Note .)
6	Center frame
7	Lower frame

Remove the power window main switch when replacing the door trim. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION ).
Remove the power window subswitch when replacing the door trim. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION ).
Assemble in the reverse order of disassembly.
