Lower Column Cover

  1. Remove the screws.
    Fig 1: Identifying Lower Column Cover And Screws
    G11275221Courtesy of MAZDA MOTORS CORP.
  2. Open the lower column cover in the direction of arrow (1) shown in the figure, move the lower column cover in the direction of arrow (2), and detach the tabs of the light switch and the wiper and washer switch from the lower column cover.
    Fig 2: Opening Lower Column Cover
    G11275222Courtesy of MAZDA MOTORS CORP.
  3. Lower the tilt lever to the bottommost position.

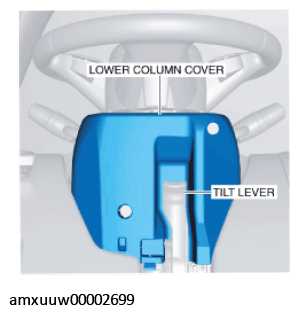

    Fig 3: Identifying Tilt Lever And Lower Column Cover
    G11275223Courtesy of MAZDA MOTORS CORP.
  4. Move the lower column cover in the direction of the arrow shown in the figure and remove it while pulling out the guide.
    Fig 4: Removing Lower Column Cover
    G11275224Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
