Back Trim Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

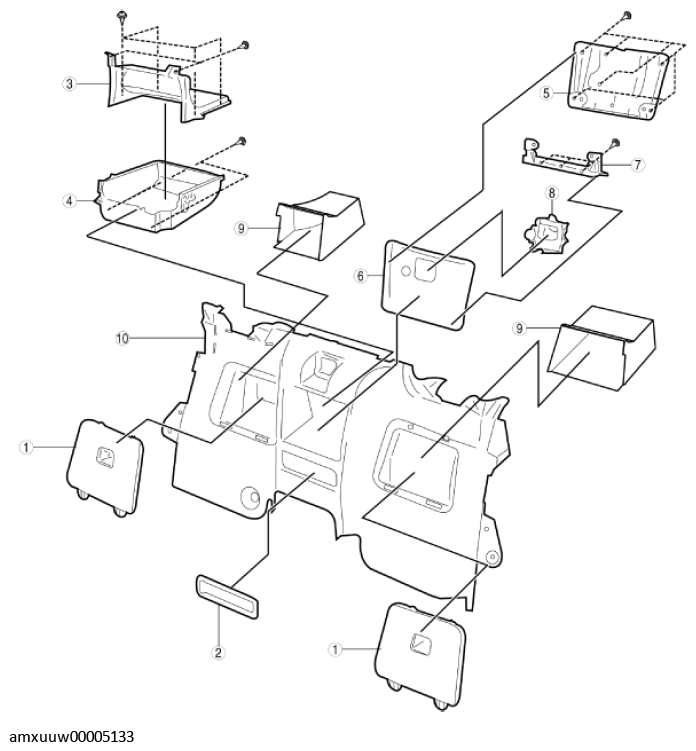

    Fig 1: Exploded View Of Back Trim
    G11275208Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Lid
    2 Cover
    3 Front box
    4 Rear box
    5 Innerlid
    6 Outerlid
    7 Flinge
    8 Lever
    9 Side box
    10 Back trim
  2. Assemble in the reverse order of disassembly.
