Trunk Lid Latch Switch Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION ).
Remove the trunk lid latch and release actuator. (See TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION ).
Verify that the continuity is as indicated in the table.

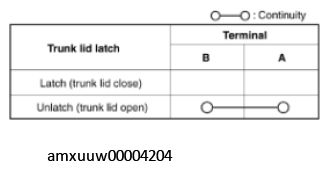

Fig 1: Trunk Lid Latch Switch Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

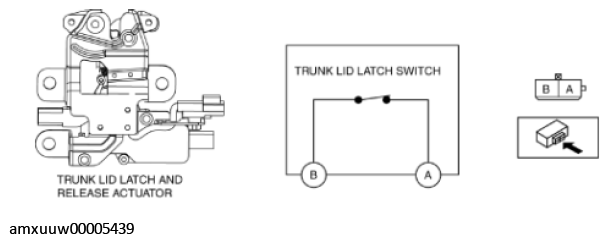

Fig 2: Checking Trunk Lid Latch Switch Terminals Continuity
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the trunk lid latch and release actuator.
NOTE:
- When inspecting the latch condition of the trunk lid latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

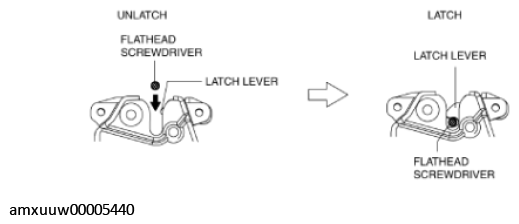

Fig 3: Pressing Trunk Lid Latch Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
