Center Display Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

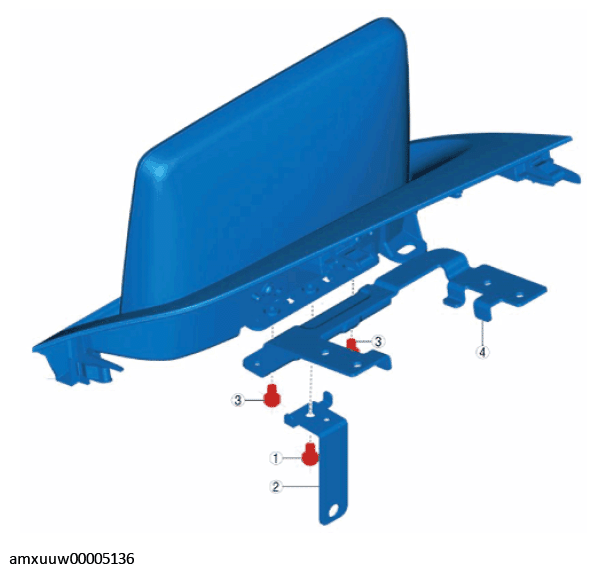

    Fig 1: Identifying Center Display Screws And Brackets
    G11274705Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw A
    2 Bracket A
    3 Screw B
    4 Bracket B
  2. Assemble in the reverse order of disassembly.
