Audio Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

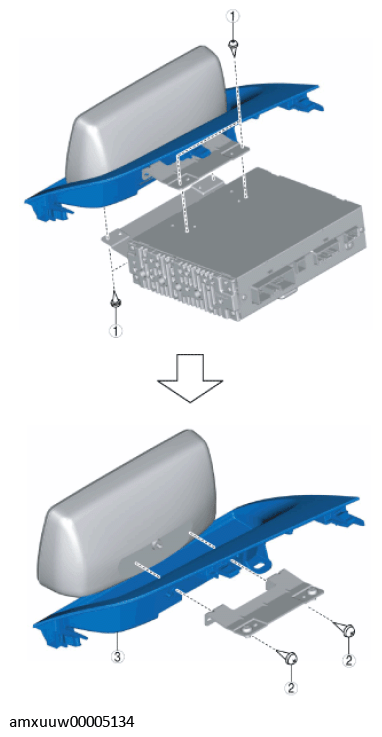

    Fig 1: Disassembling Audio Panel
    G11274681Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw A
    2 Screw B
    3 Audio panel
  2. Assemble in the reverse order of disassembly.
