Quick Diagnosis Chart

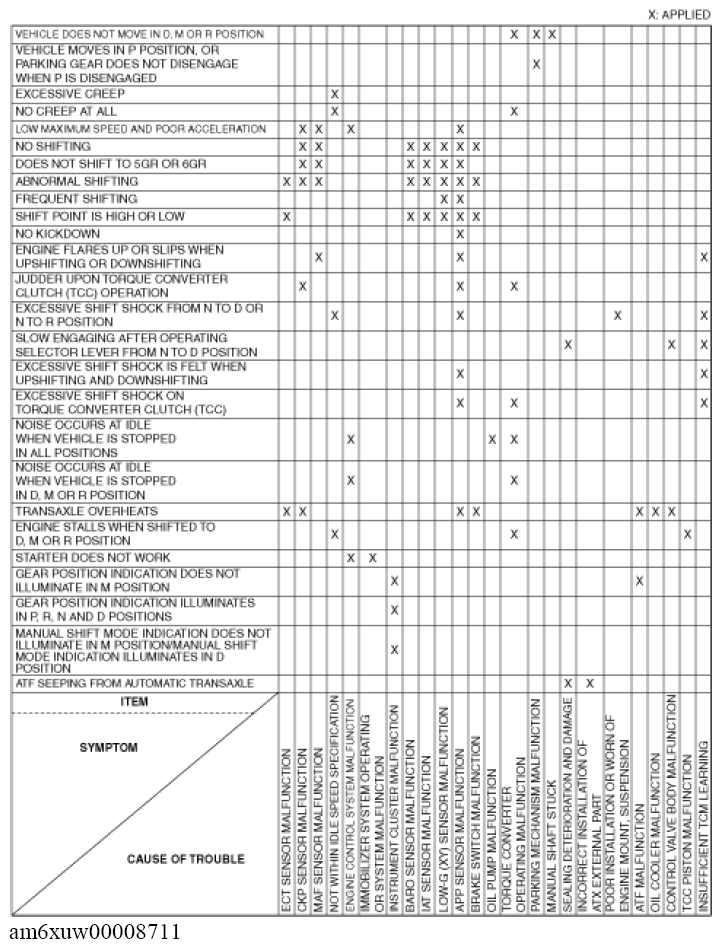

Fig 1: Quick Diagnosis Chart (GW6A-EL And GW6AX-EL)

G11432090

Courtesy of MAZDA MOTORS CORP.
