Troubleshooting Procedure

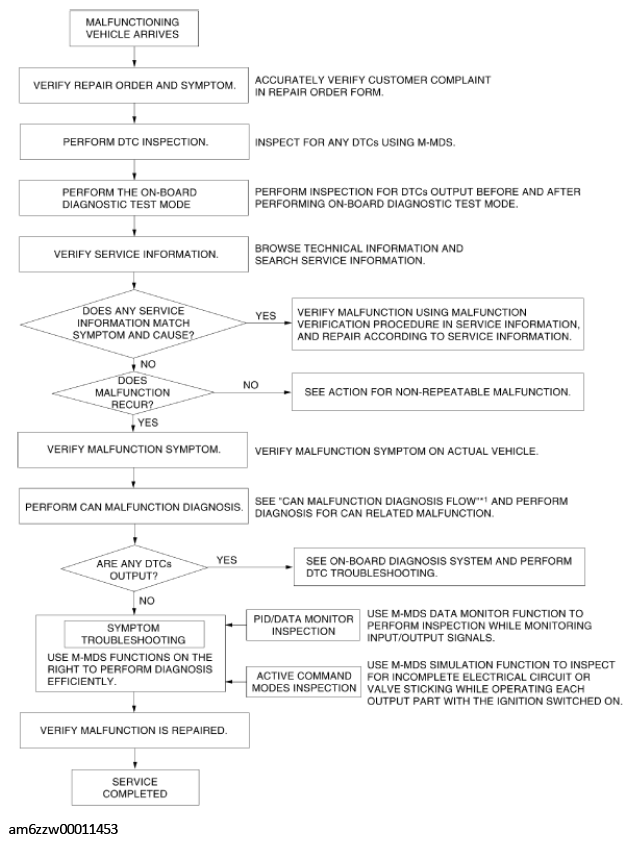

Fig 1: Automatic Transaxle Control System Troubleshooting Procedure Chart (GW6A-EL And GW6AX-EL)
G11438281Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
