DTC C0089-64; TCS Off Switch Malfunction: Notes

DETECTION CONDITION AND POSSIBLE CAUSE

DTC	C0089:64	TCS OFF switch
DETECTION CONDITION		TCS OFF is switched ON continuously for 10 s or more is detected.
FAIL-SAFE FUNCTION		Refer to "Fail-safe function table". (See DTC TABLE [DSC HU/CM] .)

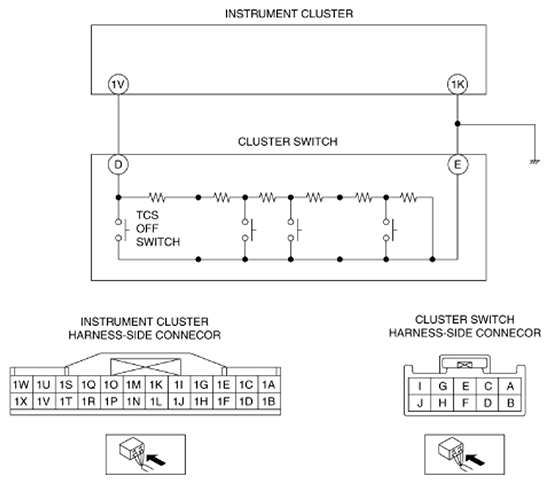

POSSIBLE CAUSE		The TCS OFF switch is pressed and held for 10 s or more Short to ground circuit in wiring harness between instrument cluster terminal 1V and cluster switch terminal D TCS OFF switch malfunction Poor connection at each connector DSC HU/CM malfunction
