Mounting Rubber Disassembly Note

  1. Remove the mounting rubber from the gear housing using the SSTs and a press.

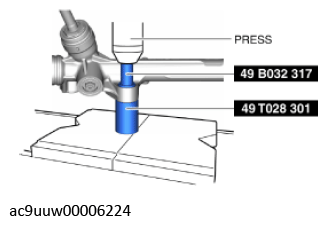

Fig 1: Removing Mounting Rubber From Gear Housing Using SST And Press
G11438886Courtesy of MAZDA MOTORS CORP.
