Automatic Transaxle Control System Wiring Diagram

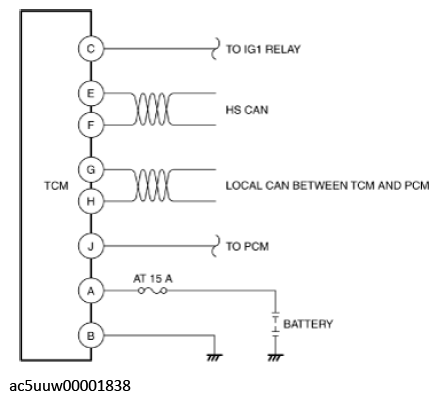

Fig 1: Automatic Transaxle Control System Wiring Diagram

G11441258

Courtesy of MAZDA MOTORS CORP.
