Third-Row Seat Belt Removal/Installation

CAUTION:
  • If the retractor is disassembled, the third-row seat belt will not pull out or retract correctly due to looseness and excessive play. Therefore, do not disassemble the retractor.
  1. Switch the ignition to off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See

      TRUNK BOARD REMOVAL/INSTALLATION.)

    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    8. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    9. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
  4. Remove the bolts.

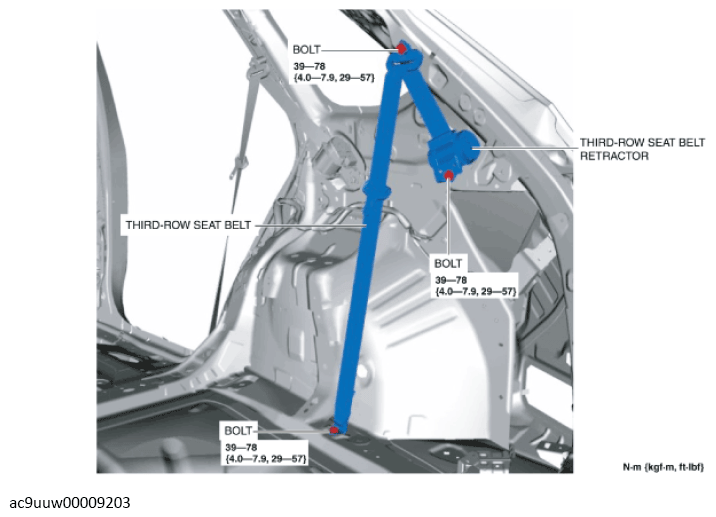

    Fig 1: Third-Row Seat Belt Retractor Bolts With Torque Specifications
    G11438844Courtesy of MAZDA MOTORS CORP.
  5. Remove the third-row seat belt retractor.
  6. Remove the third-row seat belt.
  7. Install in the reverse order of removal.
