Second-Row Buckle Removal/Installation: RH

  1. Switch the ignition to off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Second-row seat (passenger's side) (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
    2. Second-row seat side cover (passenger's side) (See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION .)
    3. Second-row seat slide adjuster (passenger's side) (See SECOND-ROW SEAT SLIDE ADJUSTER REMOVAL/INSTALLATION .)
  4. Remove the bolt.

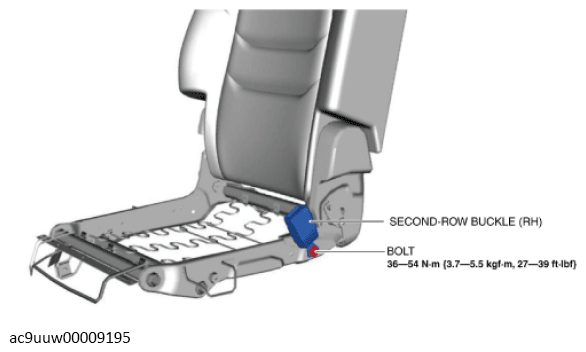

    Fig 1: Second-Row Center Buckle (RH) Bolt With Torque Specifications
    G11438836Courtesy of MAZDA MOTORS CORP.
  5. Remove the second-row buckle (RH).
  6. Install in the reverse order of removal.
