Adjuster Anchor Removal/Installation

WARNING:
  • The side air bag sensor No. 1 is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery terminal or work carefully, avoiding excessive impact to the lower part of the B-pillar.
  1. Switch the ignition to off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Set the adjuster to the lowest position.
  4. Remove the adjuster anchor cover. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  5. Remove the following parts:
    1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    4. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    5. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
  6. Remove bolt A.

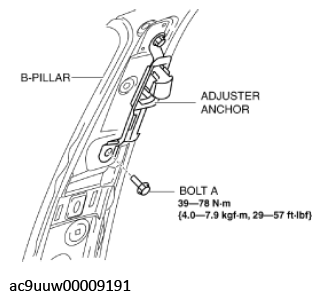

    Fig 1: B-Pillar Adjuster Anchor Bolt With Torque Specifications
    G11438817Courtesy of MAZDA MOTORS CORP.
  7. Remove bolt B.

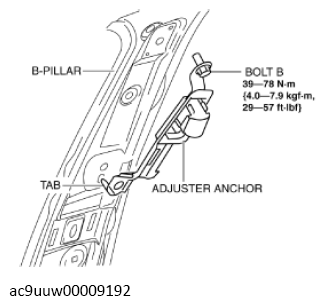

    8. Fig 2: B-Pillar Adjuster Anchor Bolt With Torque Specifications
    G11438818Courtesy of MAZDA MOTORS CORP.
  8. Remove the tab.
  9. Remove the adjuster anchor.
  10. Install in the reverse order of removal.
