Exhaust CMP Sensor

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Disconnect the exhaust CMP sensor connector.
  3. Remove the exhaust CMP sensor.

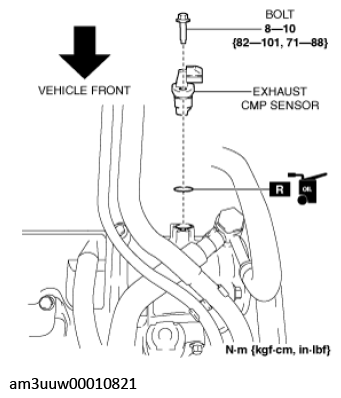

    Fig 1: Removing Exhaust CMP Sensor
    G11450581Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
