Repair and Diagnosis
>>
Engine Mechanical
>>
Mechanical
>>
Engine Mechanical System
>>
Timing Chain Removal/Installation
>>
Oil Shower Pipe Installation Note
Oil Shower Pipe Installation Note
Install the oil shower pipe in the order shown in the figure.

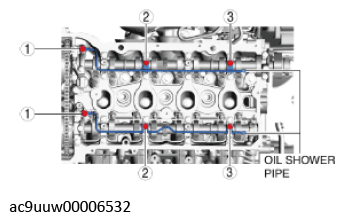

Fig 1: Oil Shower Pipe Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Tightening torque
Installation position
Tightening torque
1
9-12 N.m {92-122 kgf.cm, 80-106 in.lbf}
2, 3
8.0-9.0 N.m {82-91 kgf.cm, 71-79 in.lbf}
