Bracket No. 1 Installation Note

Temporarily tighten the bracket No. 1 bolts.
Tighten the bolts in the order shown in the figure.

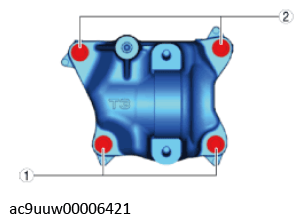

Fig 1: Oil Cooler Bracket No 1 Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

42-62 N.m {4.3-6.3 kgf.m, 31-45 ft.lbf}
