Engine Compartment Fuses

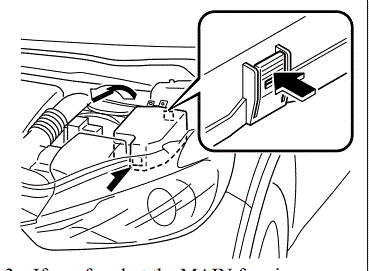

Fig 1: Engine Compartment Fuse Block Component Location

Courtesy of MAZDA MOTORS CORP.

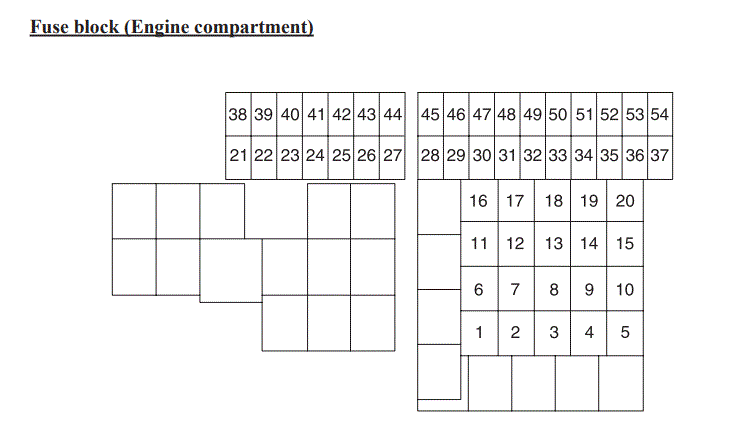

Fig 2: Engine Compartment Fuse Block Layout And Fuse Identification

Courtesy of MAZDA MOTORS CORP.

ENGINE COMPARTMENT FUSE BLOCK FUSE IDENTIFICATION LEGEND

DESCRIPTION		FUSE RATING	PROTECTED COMPONENT
1	WIPER.DEI	20A	-
2	IG2	30A	For protection of various circuits
3	INJECTOR	30A	Engine control system
4	-	-	-
5	P.WINDOW1	30A	Power windows
6	-	-	-
7	-	-	-
8	EVVT	20A	Engine control system
9	DEFOG	40A	Rear window defogger
10	-	-	-
11	R.HEATER	40A	Air conditioner
12	EPB L	20A	Electric parking brake (EPB) (LH)
13	AUDIO	40A	Audio system
14	EPB R	20A	Electric parking brake (RH)
15	ENG.MAIN	40A	Engine control system
16	ABS/DSC M	50A	ABS, Dynamic stability control system
17	CABIN.+B	50A	For protection of various circuits
18	WIPER	20A	Front window wiper and washer
19	HEATER	40A	Air conditioner
20	-	-	-
21	ENGINE.IG1	7.5A	Engine control system
22	C/U IG1	15A	For protection of various circuits
23	H/L LOW L	15A	Headlight low beam (LH)
24	H/L LOW R1	15A	-
25	ENGINE3	15A	Engine control system
26	ENGINE2	15A	Engine control system
27	ENGINE1	15A	Engine control system
28	AT	15A	Transaxle control system
29	H/CLEAN	20A	-
30	A/C	7.5A	Air conditioner
31	AT PUMP	15A	-
32	STOP	10A	Brake lights
33	R.WIPER	15A	Rear window wiper
34	H/L HI	20A	Headlight high beam
35	H/L LOW R2	15A	Headlight low beam (RH)
36	FOG	15A	Fog lights*
37	ENG.+B	7.5A	Engine control system
38	AUDIO2	7.5A	Audio system
39	INTERIOR	10A	Overhead light
40	METER2	15A	-
41	METER1	10A	Instrument cluster
42	SRS1	7.5A	Air bag
43	AUDIO4	10A	Audio system*
44	AUDIO1	25A	Audio system
45	ABS/DSC S	30A	ABS, Dynamic stability control system
46	-	-	-
47	ST.HEATER	15A	Heated steering wheel*
48	TAIL	15A	Parking lights
49	FUEL PUMP2	25A	Fuel system
50	HAZARD	25A	Hazard warning flashers, Turn signal lights, Taillights
51	DRL	15A	Daytime running lights
52	R.OUTLET2	15A	Accessory sockets
53	HORN	15A	Horn
54	ROOM	25A	For protection of various circuits
*Some models
