Rear ABS Wheel-speed Sensor Removal Note

  1. Remove the cap nut.

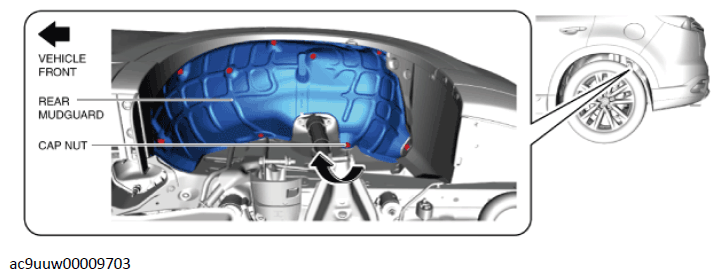

    Fig 1: Removing Rear Mudguard Cap Nuts
    G11433133Courtesy of MAZDA MOTORS CORP.
  2. Peel back the rear mudguard and remove the rear ABS wheel-speed sensor.
