Rear Door Sunshade Removal/Installation: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
Remove the screws.

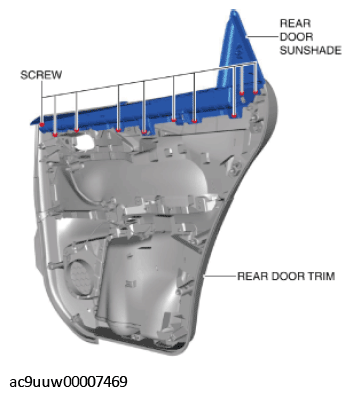

Fig 1: Removing Rear Door Sunshade Screws
Courtesy of MAZDA MOTORS CORP.
Remove the rear door sunshade.
Partially peel back the rear door glass run channel.

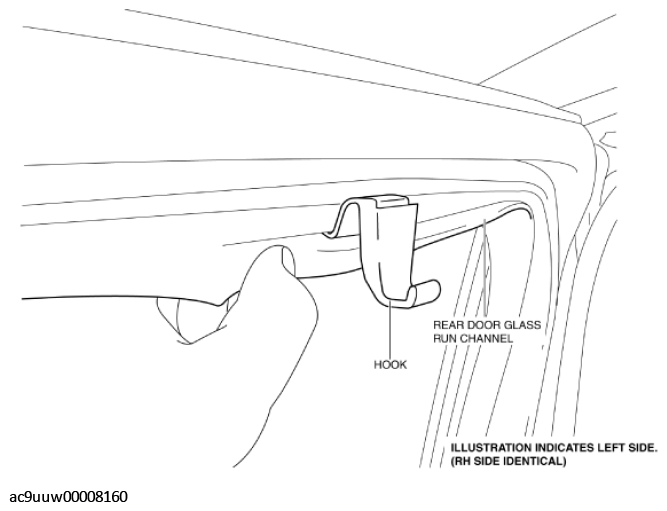

Fig 2: Peeling Rear Door Glass Run Channel
Courtesy of MAZDA MOTORS CORP.
Insert the tape-wrapped flathead screwdriver into the position shown in the figure.

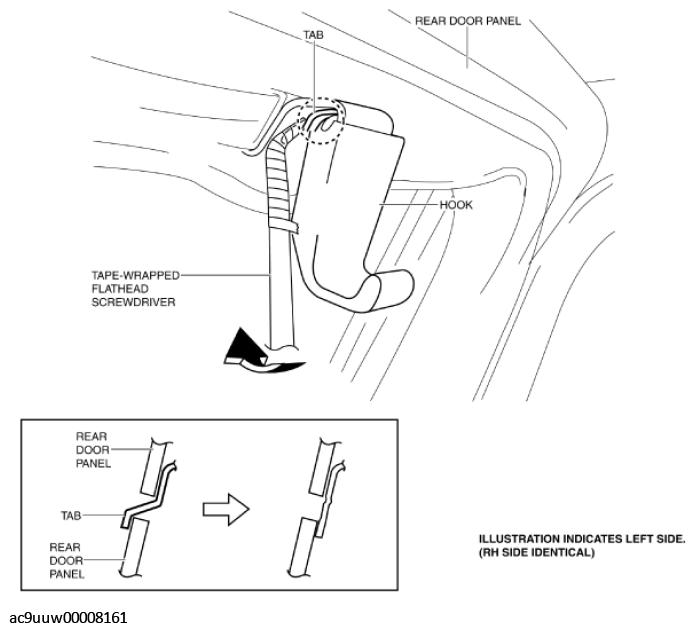

Fig 3: Inserting Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and detach the tab from the rear door panel.
Remove the hook.
Install in the reverse order of removal. (See REAR DOOR SUNSHADE INSTALLATION NOTE .)
