Cluster Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Driver side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove the hooks in the direction of the arrow in the order of (1), (2) shown in the figure.

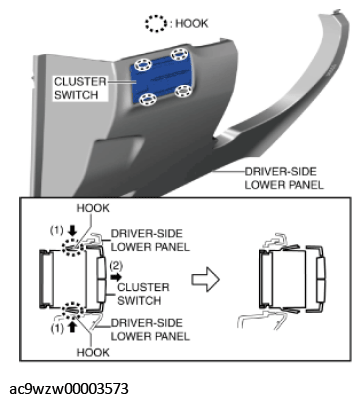

    Fig 1: Removing Cluster Switch Hooks
    G11434860Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
