Symptom Troubleshooting - Power Liftgate Control Module
>>
Foreword [Power Liftgate (PLG) System]
>>
Troubleshooting Procedure
Troubleshooting Procedure

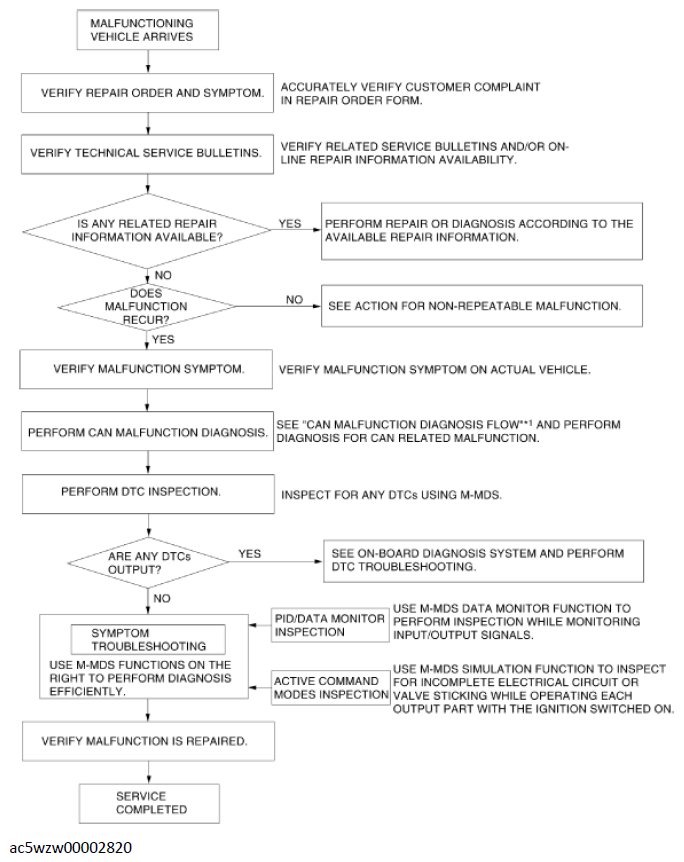

Fig 1: Power Liftgate System Troubleshooting Procedure Chart
Courtesy of MAZDA MOTORS CORP.
*1: CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
Courtesy of MAZDA MOTORS CORP.
