Rear Body Control Module (RBCM) Bracket Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (LH) (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    8. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    9. Rear body control module (RBCM) (See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION .)
  3. Remove the bolts.

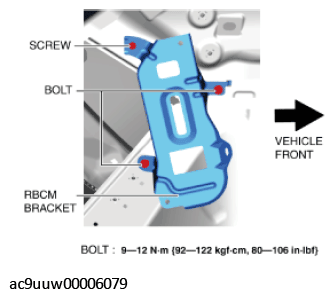

    Fig 1: Rear Body Control Module, Screw And Bolts With Torque Specification
    G11430860Courtesy of MAZDA MOTORS CORP.
  4. Remove the screw.
  5. Remove the rear body control module (RBCM) bracket.
  6. Install in the reverse order of removal.
