Theft-deterrent System

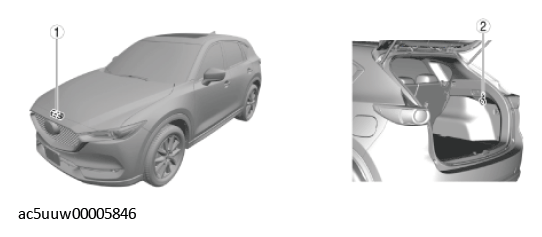

Fig 1: Locating Theft-Deterrent System
G11426689Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Hood latch switch
(See HOOD LATCH SWITCH INSPECTION .)
2 Theft-deterrent horn
(See THEFT-DETERRENT HORN REMOVAL/INSTALLATION .)
(See THEFT-DETERRENT HORN INSPECTION .)
