Propeller Shaft Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

If the constant velocity joint is bent during propeller shaft removal/installation or transportation after servicing, the constant velocity joint boot may contact the metallic cover and the boot may be damaged. Insert a rag between the boot and the metallic cover before servicing to protect the boot

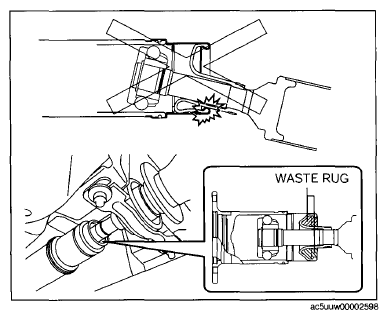

Fig 1: Caution For Inserting Rag Between Boot And Metallic Cover

Courtesy of MAZDA MOTORS CORP.

Remove the floor under cover No. 1. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove the floor under cover No. 2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove the insulator (exhaust system). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the tunnel member. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .
Remove the brace bar. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .
Remove in the order indicated in the figure.
Install in the reverse order of removal.

Perform a road test and verify that there is no abnormal vibration or noise.

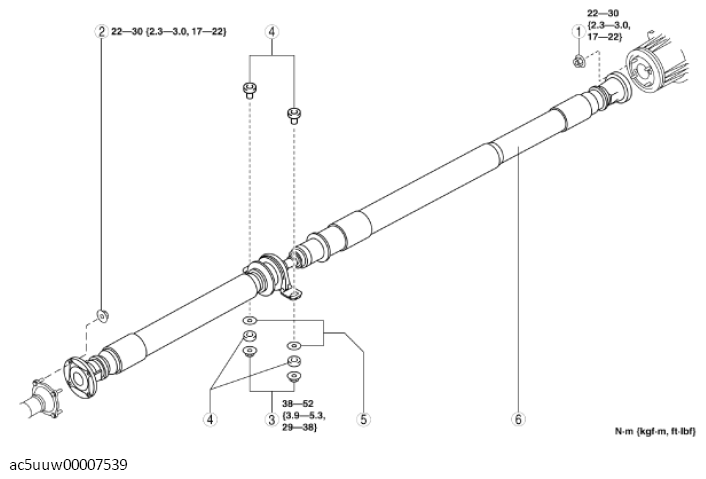

Fig 2: Removing/Installing Propeller Shaft Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Nut (rear) (See Propeller Shaft Removal Note .) (See Propeller Shaft Installation Note .)
2	Nut (front) (See Propeller Shaft Removal Note .) (See Propeller Shaft Installation Note .)
3	Nut (center bearing support) (See Propeller Shaft Removal Note .) (See Propeller Shaft Installation Note .)
4	Bush, spacer
5	Washer
6	Propeller shaft (See Propeller Shaft Removal Note .) (See Propeller Shaft Installation Note .)
