Rear Seat Back Installation Note

CAUTION:
  • When installing the rear seat back, move the rear seat back toward the inside of the vehicle so that the rear seat back trim does not interfere with the crimped part of the rear seat hinge. Otherwise, it could damage the rear seat back trim.

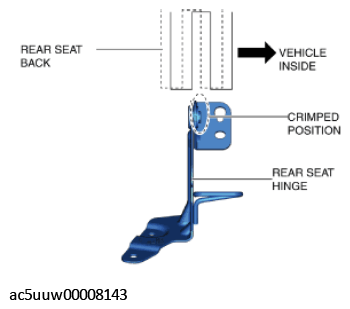

Fig 1: Moving Rear Seat Back Toward Vehicle Inside
G11426473Courtesy of MAZDA MOTORS CORP.
