Selector Lever Knob Installation Note

1. Install the spring to the selector lever knob.
   CAUTION:

   • Install the spring so that it is stopped by the stopper.
   Fig 1: Installing Spring To Selector Lever Knob

   Courtesy of MAZDA MOTORS CORP.
2. Install the lock release button cover so that it engages with the hook of the selector lever knob.
   Fig 2: Installing Lock Release Button Cover

   Courtesy of MAZDA MOTORS CORP.

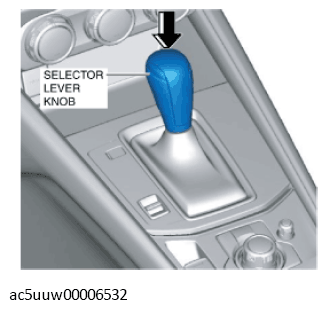

3. Install the selector lever knob to the selector lever component.

Fig 3: Installing Selector Lever Knob To Selector Lever Component

Courtesy of MAZDA MOTORS CORP.
