Connector Disconnect Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the area (1) indicated by the arrow and slide it as shown in the figure (2).

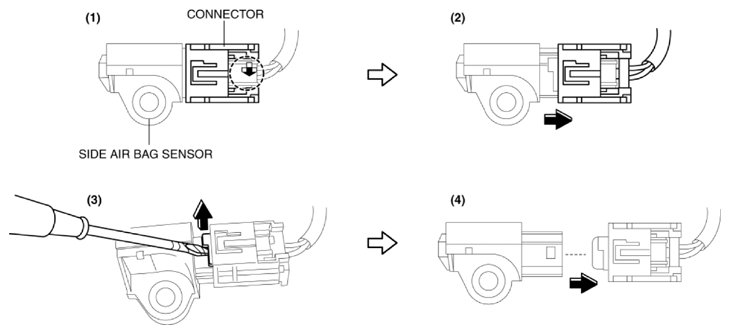

    Fig 1: Disconnecting Side Air Bag Sensor Connector
    G10937919Courtesy of MAZDA MOTORS CORP.
  2. Lift up the location shown in the figure using a tape-wrapped flathead screwdriver (3) and disconnect the connector (4).
