Side Air Bag Module Removal/Installation [Two-Step Deployment Control System]

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
If the side air bag module is installed with debris in the seat back, the foreign material may be scattered when the side air bag module operates (deploys), causing injury. Verify that there is no foreign material in the seat back before installing the side air bag module.

Switch the ignition to off.
Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove the seat back trim and the seat back pad. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION .)
Disconnect the side air bag module connector.

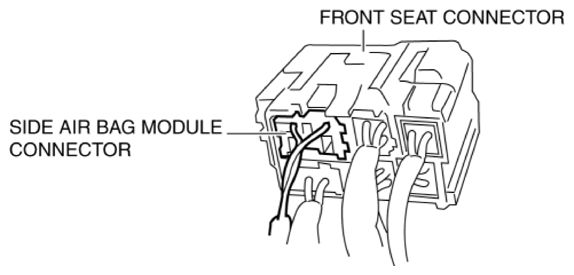

Fig 1: Identifying Side Air Bag Module Connector And Front Seat Connector
Courtesy of MAZDA MOTORS CORP.
Remove the fastener.

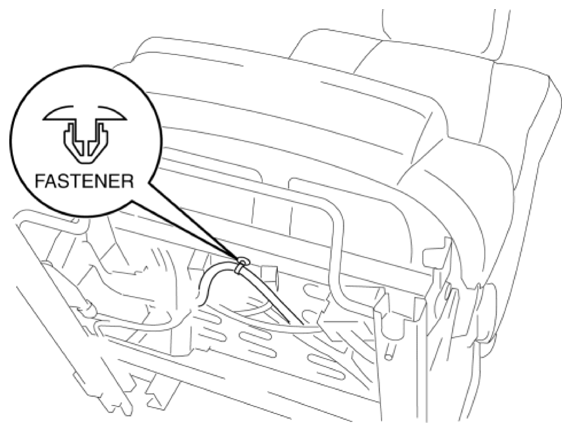

Fig 2: Identifying Side Air Bag Module Fastener
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.

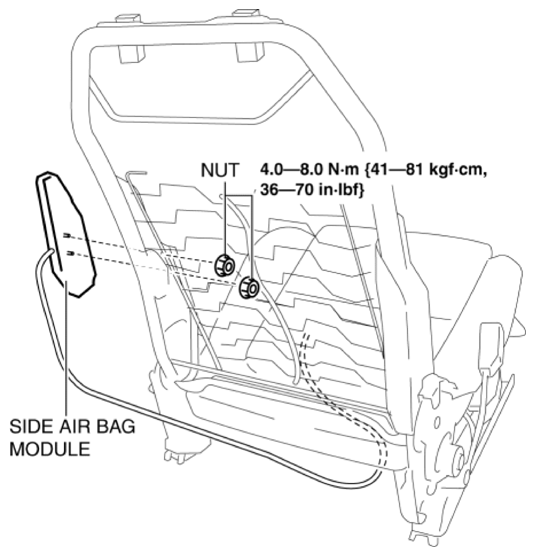

Fig 3: Identifying Side Air Bag Module And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the side air bag module.
Install in the reverse order of removal.
Switch the ignition ON (engine off or on).
Verify that the air bag system warning light illuminates for approx. 6 s and goes out.
- If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
