Lap Pre-tensioner Seat Belt

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fastener.

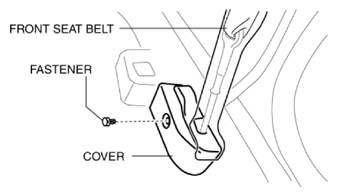

    Fig 1: Identifying Front Seat Belt, Fastener And Cover
    G10937946Courtesy of MAZDA MOTORS CORP.
  2. Remove the cover.
  3. Disconnect the lap pre-tensioner seat belt connector and connect the SST (Adapter harness)  as shown in the figure.

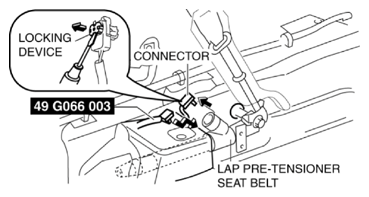

    Fig 2: Disconnecting Lap Pre-Tensioner Seat Belt Connector
    G10937947Courtesy of MAZDA MOTORS CORP.
  4. Connect the SST (Deployment tool)  to the SST (Adapter harness)  .
    Fig 3: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G10937948Courtesy of MAZDA MOTORS CORP.
  5. Connect the SST (Deployment tool)  to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  6. Verify that the red lamp on the SST (Deployment tool)  is illuminated.
  7. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
  8. Press the activation switch on the SST (Deployment tool)  to operate (deploy) the lap pre-tensioner seat belt.
    Fig 4: Pressing Activation Switch On SST (Deployment Tool)
    G10937949Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The lap pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the lap pre-tensioner seat belt for at least 15 min after deployment.
  9. Disconnect the SST (Deployment tool)  from the SST (Adapter harness)  .
