DTC B1D07-11: Turn Light (RH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Turn light (RH) circuit malfunction |
| Detection condition |
- The front body control module (FBCM) detects a short to ground in the turn light (RH) circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
- |
| Possible cause |
- Front combination light (RH) connector or terminal malfunction
- Malfunction in power outer mirror (RH) connector or terminal
- Rear turn light (RH) connector or terminal malfunction
- Front body control module (FBCM) connector or terminal malfunction

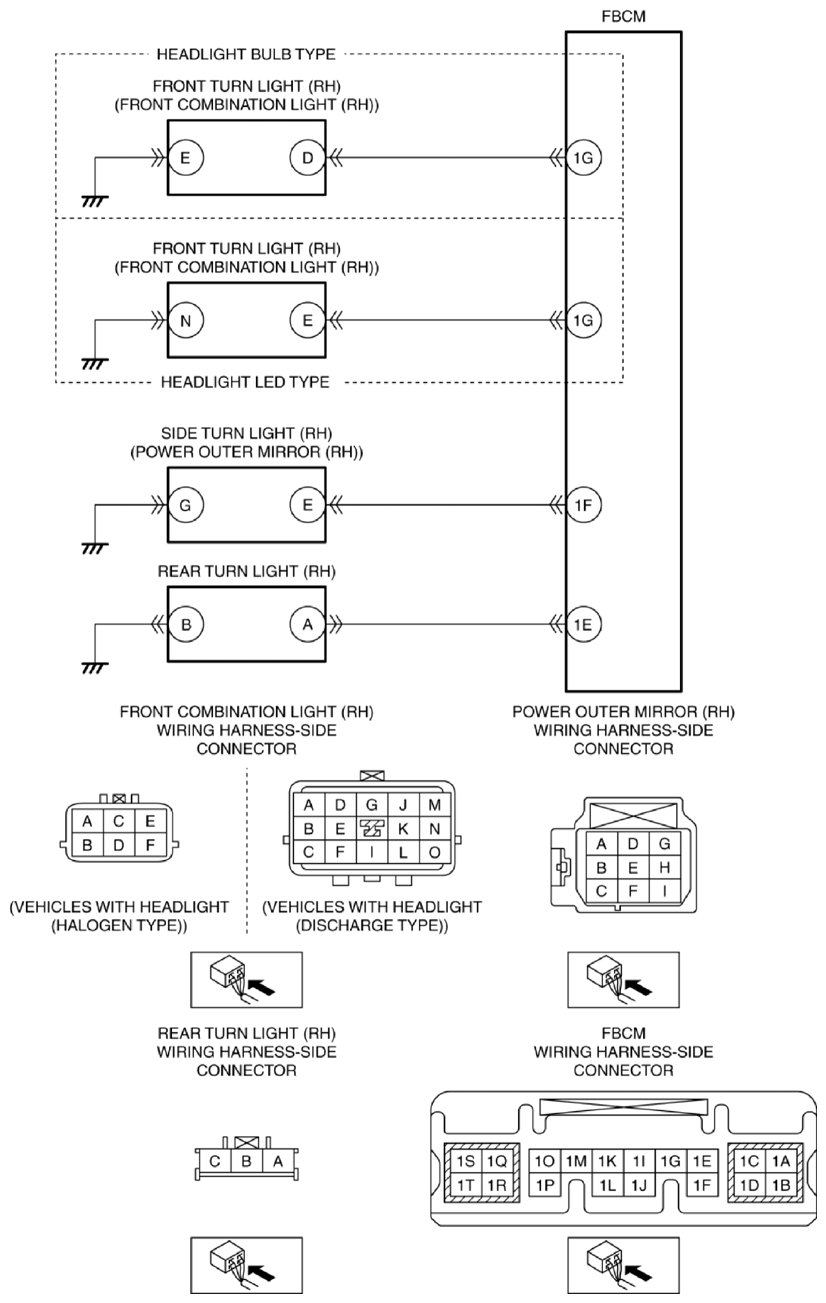

- Short to ground in wiring harness between the following terminals:
- Front combination light (RH) terminal D and front body control module (FBCM) terminal 1G (with headlights (halogen type))
- Front combination light (RH) terminal E and front body control module (FBCM) terminal 1G (with headlights (discharge type))
- Power outer mirror (RH) terminal E and front body control module (FBCM) terminal 1F
- Rear turn light (RH) terminal A and front body control module (FBCM) terminal 1E
- Side turn light (RH) malfunction
- Rear turn light (RH) malfunction
- Front turn light (RH) malfunction
- Front body control module (FBCM) malfunction
|
|
|
