DTC B13D2-12: Front Fog Light Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Front fog light relay circuit malfunction |
| Detection condition |
- The front body control module (FBCM) detects a short to power supply in the front fog light relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
- |
| Possible cause |
- Front fog light relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

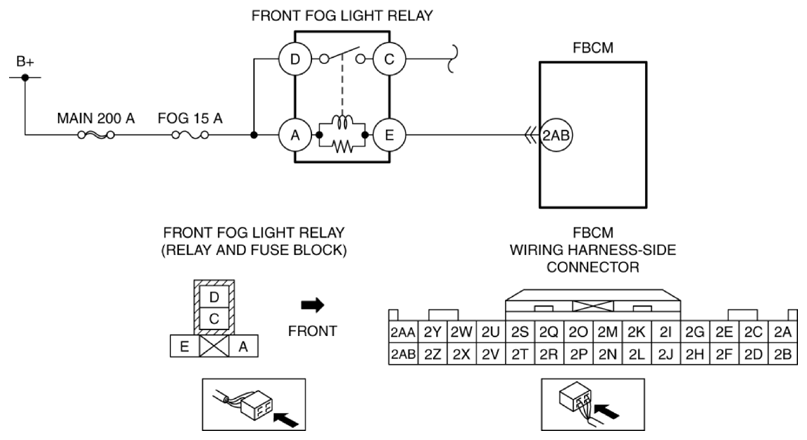

- Short to power supply in wiring harness between front fog light relay terminal E and front body control module (FBCM) terminal 2AB
- Front body control module (FBCM) malfunction
|
|
|
