DTC B109A-12: Headlight Hi Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |

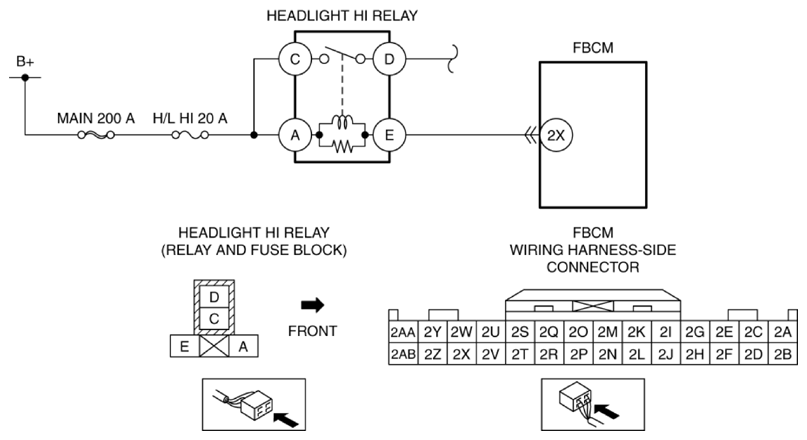

Headlight HI relay circuit malfunction |
| Detection condition |
- The front body control module (FBCM) detects a short to power supply in the headlight HI relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
- |
| Possible cause |
- Headlight HI relay malfunction
- Front body control module (FBCM) connector or terminal malfunction
- Short to power supply in the wiring harness between headlight HI relay terminal E and front body control module (FBCM) terminal 2X
- Front body control module (FBCM) malfunction
|
|
|
