DTC B1092-11: DRL Relay Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
DRL relay circuit malfunction |
| Detection condition |
- The front body control module (FBCM) detects a short to ground in the DRL relay circuit with the ignition switched ON (engine off or on).
|
| Fail-safe |
- |
| Possible cause |
- DRL relay malfunction
- Front body control module (FBCM) connector or terminal malfunction

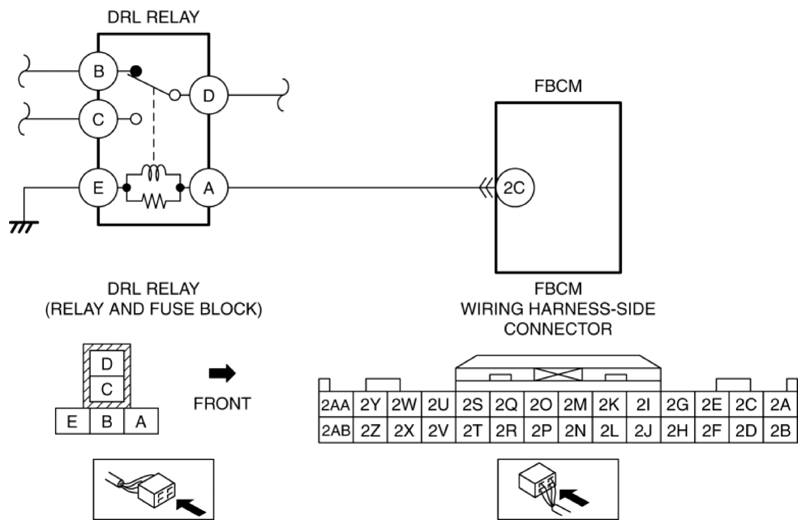

- Short to ground in wiring harness between DRL relay terminal A and front body control module (FBCM) terminal 2C
- Front body control module (FBCM) malfunction
|
|
|
