DTC B1041-14; Headlight Leveling Actuator Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

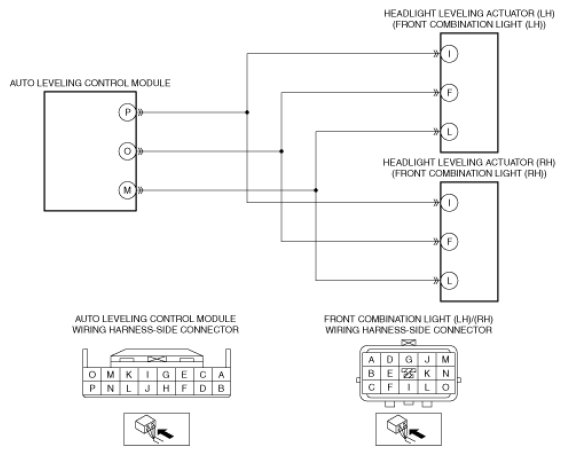

DETECTION CONDITION & POSSIBLE CAUSE
| Description |
Headlight leveling actuator circuit malfunction |
| Detection condition |
- Headlight leveling actuator circuit voltage of 3.2 V or less is detected for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
- The headlight leveling actuator is stopped at the position when the malfunction is determined.
|
| Possible cause |
- Front combination light (LH) connector or terminal malfunction
- Front combination light (RH) connector or terminal malfunction
- Auto leveling control module connector or terminal malfunction
- Short to ground in wiring harness between the following terminals:
- Auto leveling control module terminal P-Front combination light (LH) terminal I
- Auto leveling control module terminal O-Front combination light (LH) terminal F
- Auto leveling control module terminal P-Front combination light (RH) terminal I
- Auto leveling control module terminal O-Front combination light (RH) terminal F
- Open circuit in wiring harness between the following terminals:
- Auto leveling control module terminal P-Front combination light (LH) terminal I
- Auto leveling control module terminal O-Front combination light (LH) terminal F
- Auto leveling control module terminal P-Front combination light (RH) terminal I
- Auto leveling control module terminal O-Front combination light (RH) terminal F
- Headlight leveling actuator (LH) malfunction
- Headlight leveling actuator (RH) malfunction
- Auto leveling control module malfunction
|
|
|
