Wave pattern (reference)

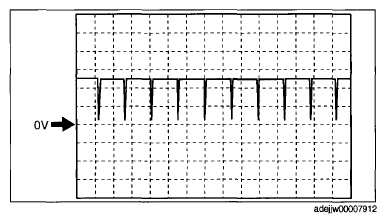

Fig 1: CKP Sensor Wave Pattern (Reference)

G09074554

Courtesy of MAZDA MOTORS CORP.

Oscilloscope setting

2 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
