Evaporative Hose Installation Note
Evaporative Hose Installation Note
Install the evaporative hose as shown in the figure.

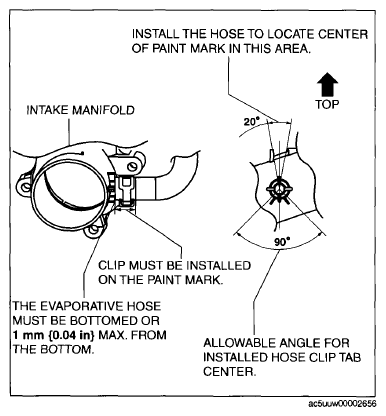

Fig 1: Adjusting Angle Of Installed Hose Clips Tab Center
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
