No. 3 Engine Mount Installation Note

CAUTION:

If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. When installing the No. 3 engine mount, align the alignment mark placed during removal and install it to the original position.

NOTE:

When replacing the No. 3 engine mount, place a mark at the same position as the one placed before removal.

Temporarily tighten the No. 3 engine mount installation bolts and nuts using the following procedure:
1. Align the alignment marks on the body side and No. 3 engine mount, and temporarily tighten the bolts shown in the figure.

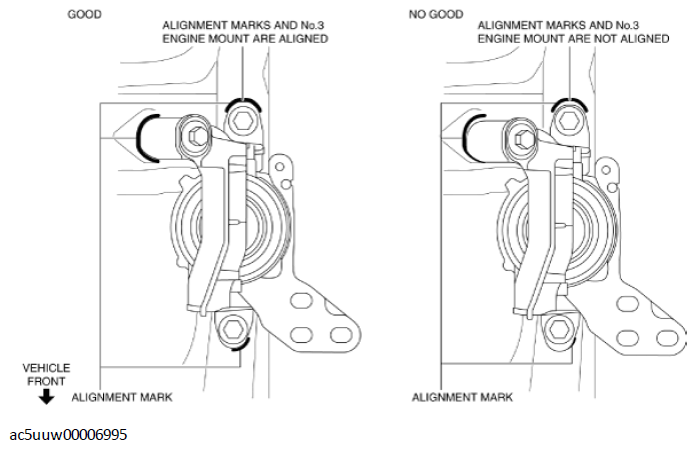

  Fig 1: Aligning Alignment Marks On Body Side And Engine Mount (Good)
  Courtesy of MAZDA MOTORS CORP.
2. Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No. 3 engine mount and nuts.
  - If the alignment marks are not aligned, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.

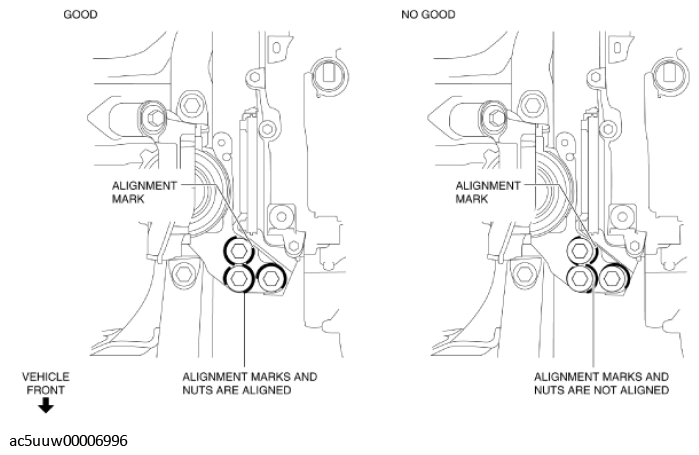

  Fig 2: Aligning Alignment Marks And Nut Alignment Mark
  Courtesy of MAZDA MOTORS CORP.

Tighten the No. 3 engine mount installation bolts and nuts in the order as shown in the figure.

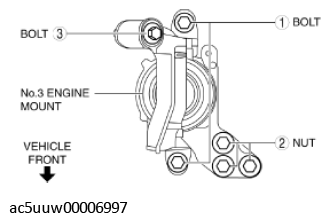

Fig 3: Engine Mount Installation Bolts And Nuts Tightening Sequence

G11429999

Courtesy of MAZDA MOTORS CORP.

Tightening torque

Installation position	Tightening torque
1	76-95 N.m {7.8-9.6 kgf.m, 57-70 ft.lbf}
2	82-95 N.m {8.4-9.6 kgf.m, 61-70 ft.lbf}
3	49-65 N.m {5.0-6.6 kgf.m, 37-47 ft.lbf}

Remove the SST.
Install the ground cable to the No. 3 engine mount.

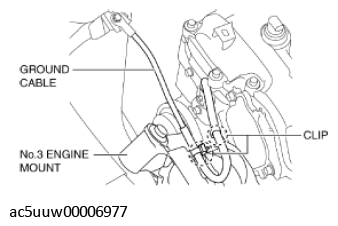

Fig 4: Ground Cable, Engine Mount And Clip

G11429940
