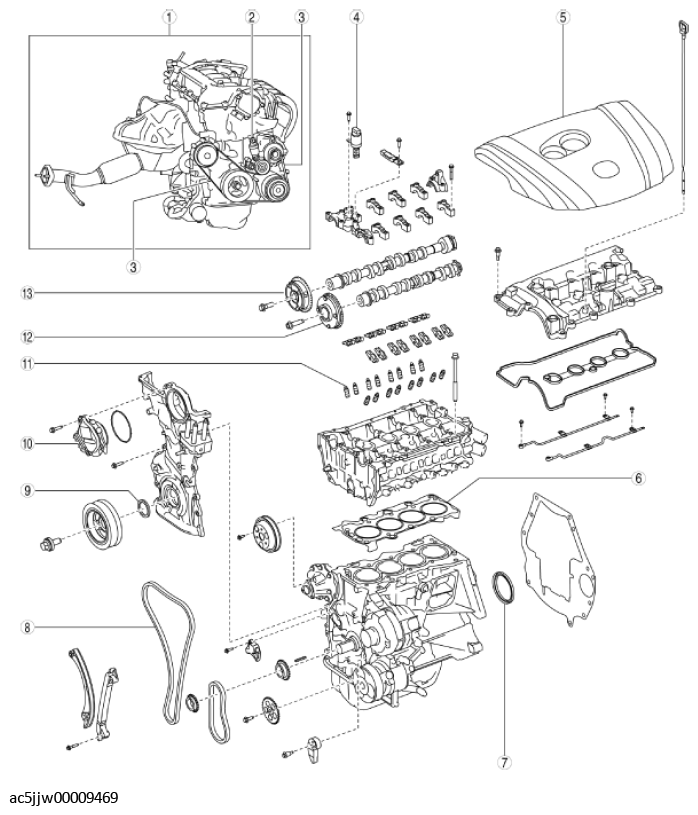

| 1 |
Engine
(See
ENGINE TUNE-UP .)
(See
COMPRESSION INSPECTION .)
(See
ENGINE MOUNT DISASSEMBLY/ASSEMBLY .)
(See
ENGINE REMOVAL/INSTALLATION .)
(See
ENGINE MOUNT DISASSEMBLY/ASSEMBLY .) |
| 2 |
Drive belt auto tensioner
(See
DRIVE BELT AUTO TENSIONER INSPECTION .)
(See
DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION .)) |
| 3 |
Drive belt
(See
DRIVE BELT INSPECTION .)
(See
DRIVE BELT REMOVAL/INSTALLATION .) |
| 4 |
OCV
(See
OIL CONTROL VALVE (OCV) INSPECTION .)
(See
OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION .) |
| 5 |
Plughole plate
(See
PLUG HOLE PLATE REMOVAL/INSTALLATION .) |
| 6 |
Cylinder head gasket
(See
CYLINDER HEAD GASKET REPLACEMENT .) |
| 7 |
Rear oil seal
(See
REAR OIL SEAL REPLACEMENT .) |
| 8 |
Timing chain
(See
TIMING CHAIN REMOVAL/INSTALLATION .) |
| 9 |
Front oil seal
(See
FRONT OIL SEAL REPLACEMENT .) |
| 10 |
Electric variable valve timing motor/driver
(See
ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION .))
(See
ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION .)) |
| 11 |
HLA
(See
HYDRAULIC LASH ADJUSTER (HLA) INSPECTION .)
(See
HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION .)) |
| 12 |
Electric variable valve timing actuator
(See
ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION .))
(See
ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .)) |
| 13 |
Hydraulic variable valve timing actuator
(See
HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION .))
(See
ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .)) |
