No. 3 Engine Mount Installation Note

CAUTION:
  • If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. When installing the No. 3 engine mount, align the alignment mark placed during removal and install it to the original position.
NOTE:
  • When replacing the No. 3 engine mount, place a mark at the same position as the one placed before removal.
  • If the No. 3 engine mount nut is loosened, tighten the engine front cover stud bolts because they may have loosened.
  1. Tighten the engine front cover stud bolts.
    Fig 1: Tightening Engine Front Cover Stud Bolts
    G09074107Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    7-13 N.m {72-132 kgf.cm, 62-115 in.lbf}

  2. Temporarily tighten the No. 3 engine mount installation bolts and nuts using the following procedure:
    1. Align the alignment marks on the body side and No. 3 engine mount, and temporarily tighten the bolts shown in the figure.

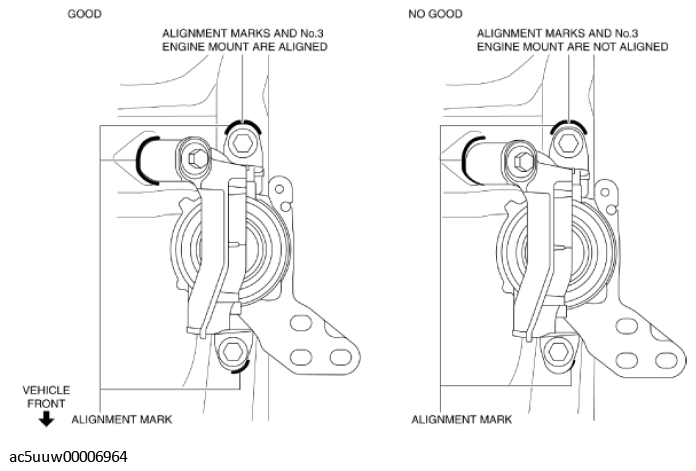

      Fig 2: Aligning Alignment Marks On Body Side And Engine Mount Side
      G11429759Courtesy of MAZDA MOTORS CORP.
    2. Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No. 3 engine mount and nuts.
      • If the alignment marks are not aligned, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.

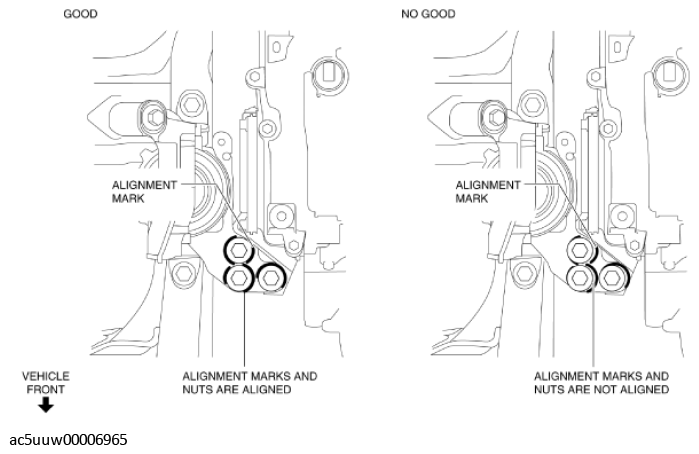

      Fig 3: Aligning Alignment Marks And Nuts Alignment Marks (Good)
      G11429760Courtesy of MAZDA MOTORS CORP.
  3. Tighten the No. 3 engine mount installation bolts and nuts in the order shown in the figure.

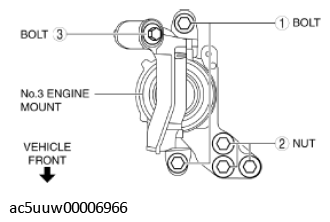

    Fig 4: Engine Mount Installation Bolts And Nuts Tightening Sequence
    G11429761Courtesy of MAZDA MOTORS CORP.

    Tightening torque

    Installation position Tightening torque
    1 76-95 N.m {7.8-9.6 kgf.m, 57-70 ft.lbf}
    2 82-95 N.m {8.4-9.6 kgf.m, 61-70 ft.lbf}
    3 49-65 N.m {5.0-6.6 kgf.m, 37-47 ft.lbf}
  4. Remove the engine lifter or garage jack.
  5. Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  6. Install the ground cable to the No. 3 engine mount.

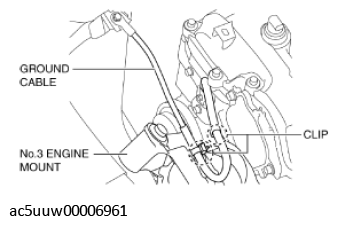

Fig 5: Ground Cable, Engine Mount And Clips
G11429752Courtesy of MAZDA MOTORS CORP.
