Outer Mirror Glass Removal

NOTE:

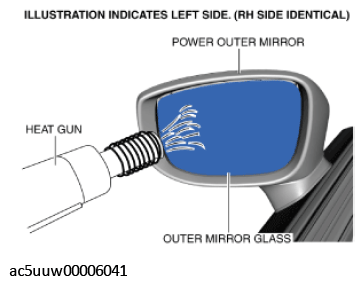

Removal of the outer mirror glass can be facilitated by warming the back of the glass to approx. 50°C {90°F} to 60° {108°F} degrees using a heat gun.
Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} degrees could deform it.

Fig 1: Heating Outer Mirror Glass Holder Using Heat Gun

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
To facilitate removal of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure.

Fig 2: Turning Outer Mirror Glass
Courtesy of MAZDA MOTORS CORP.

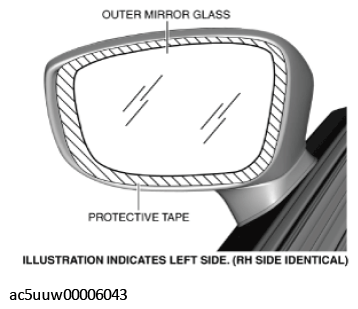

To prevent scratches or damage, apply protective tape to the positions shown in the figure.

Fig 3: Applying Protective Tape To Positions
Courtesy of MAZDA MOTORS CORP.

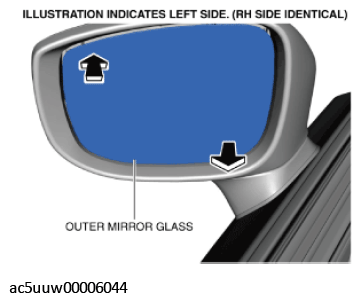

Move the outer mirror glass in the directions of the arrows shown in the figure to secure a space for inserting your fingers.

Fig 4: Moving Outer Mirror Glass
Courtesy of MAZDA MOTORS CORP.

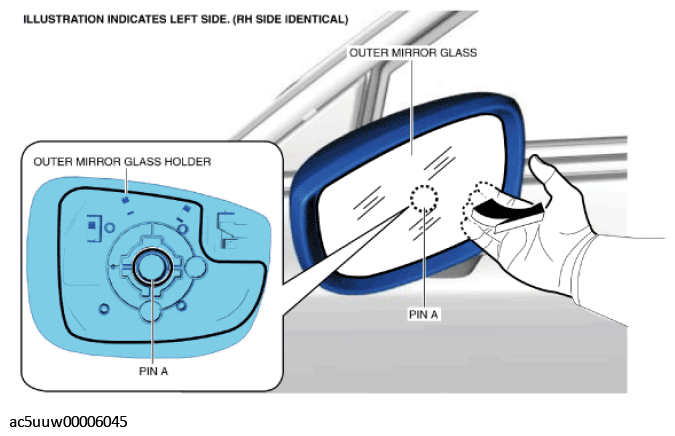

Insert your fingers into the area shown in the figure, and move the outer mirror glass in the direction of the arrow to detach pin A.
CAUTION:
- When moving the outer mirror glass, if only the mirror glass is moved, the mirror glass could separate from the outer mirror glass holder. Move the outer mirror glass holder together with the mirror glass when moving the outer mirror glass.
Fig 5: Detaching Outer Mirror Glass Pin A
Courtesy of MAZDA MOTORS CORP.

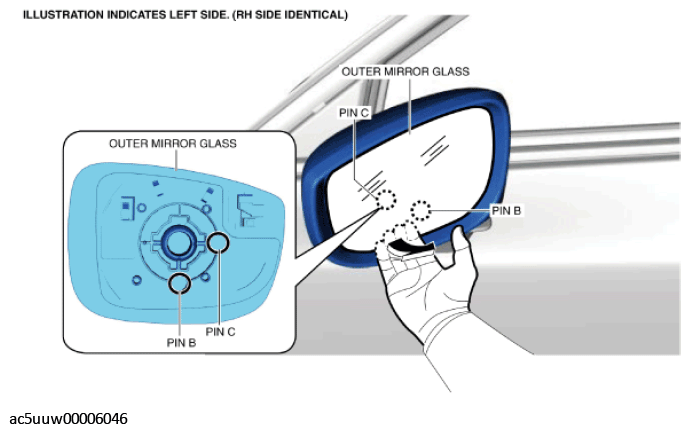

Insert your fingers behind the glass in the same manner as Step 4 and disengage the remaining pins B and C.

Fig 6: Detaching Outer Mirror Glass Pins B And C
Courtesy of MAZDA MOTORS CORP.

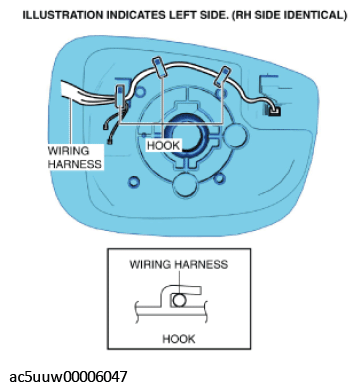

Remove the wiring harness from the hooks.

Fig 7: Removing Wiring Harness From Hooks
Courtesy of MAZDA MOTORS CORP.

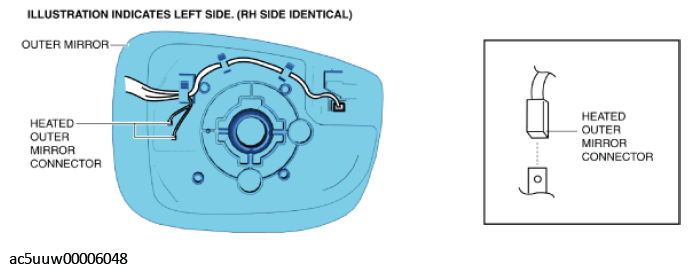

Disconnect the heated outer mirror connectors. (with heated outer mirror)

Fig 8: Disconnecting Heated Outer Mirror Connectors
Courtesy of MAZDA MOTORS CORP.

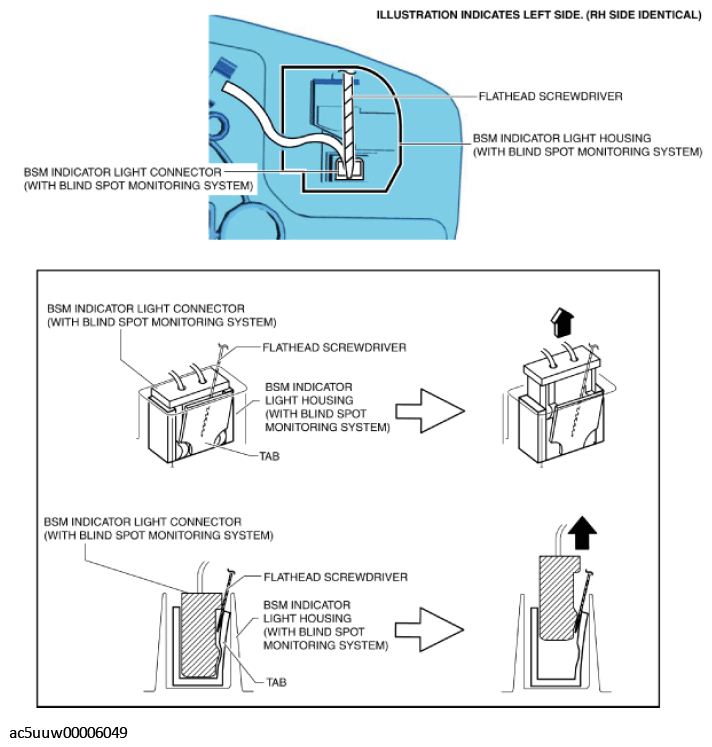

Insert a small, tape-wrapped flathead screwdriver as shown in the figure and disconnect the blind spot monitoring (BSM) indicator light connector. (With blind spot monitoring (BSM) system)
CAUTION:
- Remove the blind spot monitoring (BSM) indicator light connector being careful not to pry the blind spot monitoring (BSM) indicator light housing after inserting a tape-wrapped flathead screwdriver. If the blind spot monitoring (BSM) indicator light connector and the housing are damaged or deformed, poor contact of the connector may occur, causing the indicator light not to turn on.
Fig 9: Prying Blind Spot Monitoring (BSM) Indicator Light Housing
Courtesy of MAZDA MOTORS CORP.
Remove the outer mirror glass holder and the outer mirror glass as a single unit.
