On-Board Diagnostic Wiring Diagram [Position Memory Control Module]
On-Board Diagnostic Wiring Diagram [Position Memory Control Module]

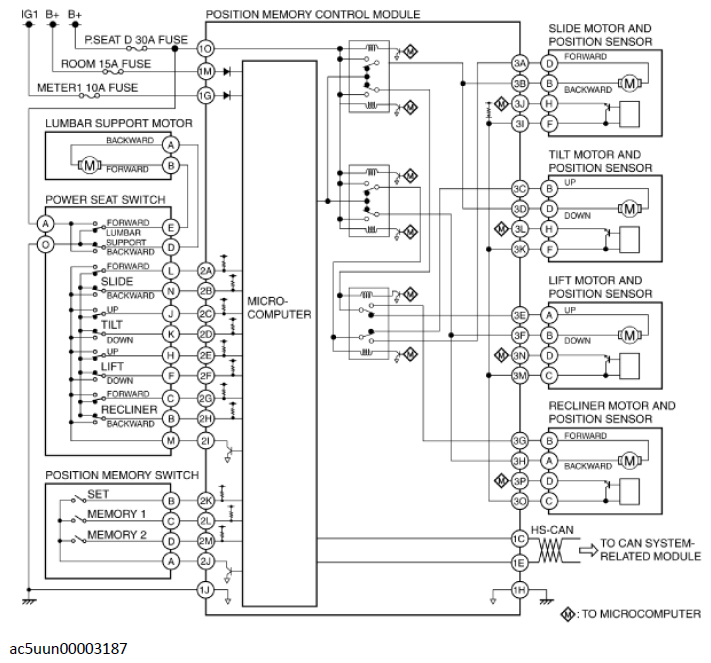

Fig 1: Position Memory Control Module On-Board Diagnostic Wiring Diagram
