On-Board Diagnostic - Adaptive Front Lighting System Control Module
>>
Foreword [Adaptive Front Lighting System (AFS) Control Module]
>>
Troubleshooting Procedure
Troubleshooting Procedure

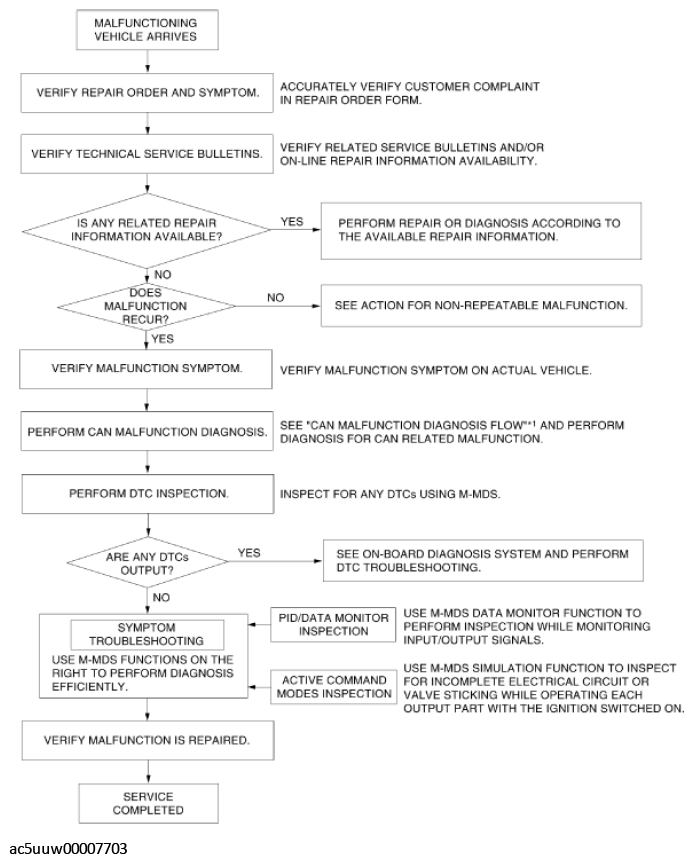

Fig 1: Vehicle Malfunction Complaint By Customer - Troubleshooting Flowchart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
