CX-3 Touring, FWD
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
On-Board Diagnostic - Standard Deployment Control System
>>
On-Board Diagnostic Wiring Diagram [SAS Control Module (Standard Deployment Control System)]
On-Board Diagnostic Wiring Diagram [SAS Control Module (Standard Deployment Control System)]
SM1262999

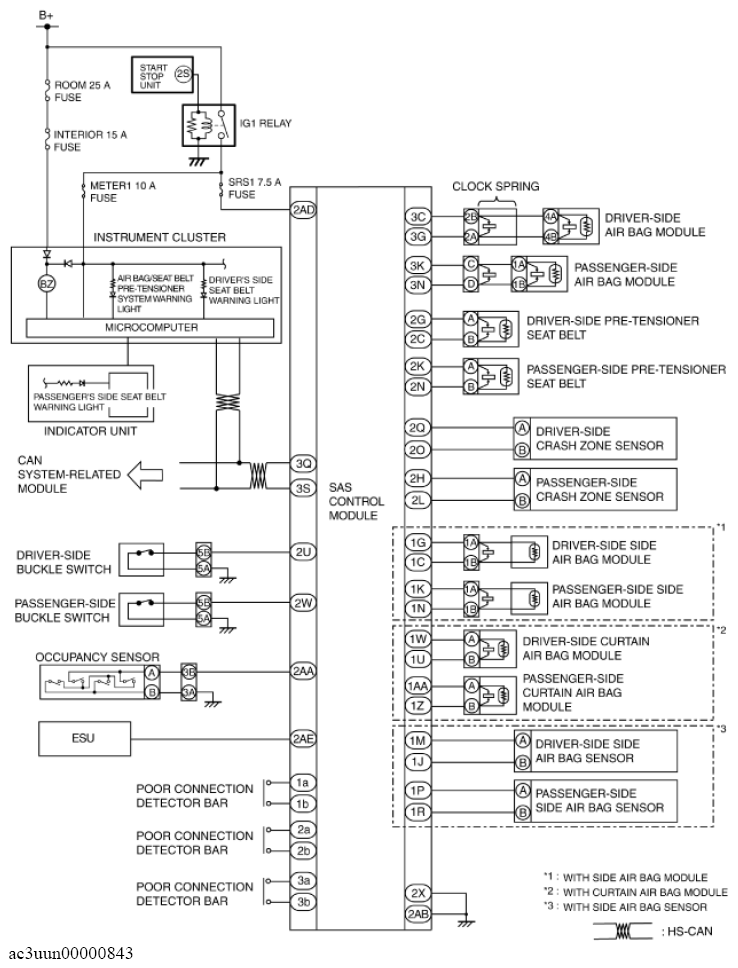

Fig 1: SAS Control Module Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Fig 2: SAS Control Module Harness Side Connector
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
