Rear Differential Member Installation Note

WARNING: This page is about a different variant/trim than selected.

Install the rear differential member.

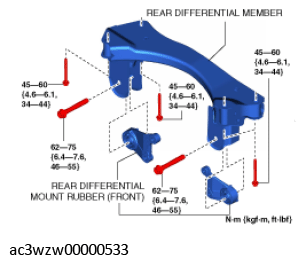

Fig 1: Rear Differential Mount Rubber (Front), Rear Differential Member And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the rear differential mount rubber (front).
Assemble the clips.

Fig 2: Rear Differential Mount Rubber (Front) And Clips
Courtesy of MAZDA MOTORS CORP.
Install the protectors.

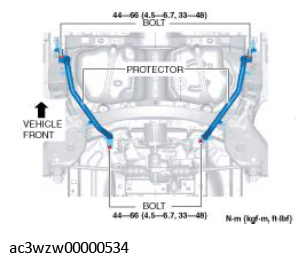

Fig 3: Rear Differential Member Protectors And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the floor under cover. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
