No. 1 Engine Mount (4WD): Notes

NOTE:

When removing the No. 1 engine mount bracket B for 4WD vehicles, perform the procedure with the transfer completely removed from the transaxle.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

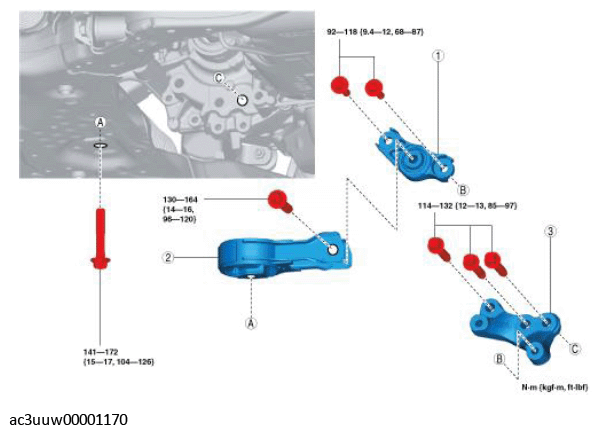

Fig 1: No. 1 Engine Mount Related Components With Torque Specification (4WD)

G11437183

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 1 engine mount bracket A (See No. 1 engine mount removal note (4WD) (See No. 1 engine mount installation note (4WD) .)
2	No. 1 engine mount rubber (See No. 1 engine mount removal note (4WD) .) (See No. 1 engine mount installation note (4WD) .)
3	No. 1 engine mount bracket B (See No. 1 engine mount removal note (4WD) .) (See No. 1 engine mount installation note (4WD) .)
