Rear Buckle Installation Note
Rear Buckle Installation Note
After installing the rear buckle, place it as shown in the figure.

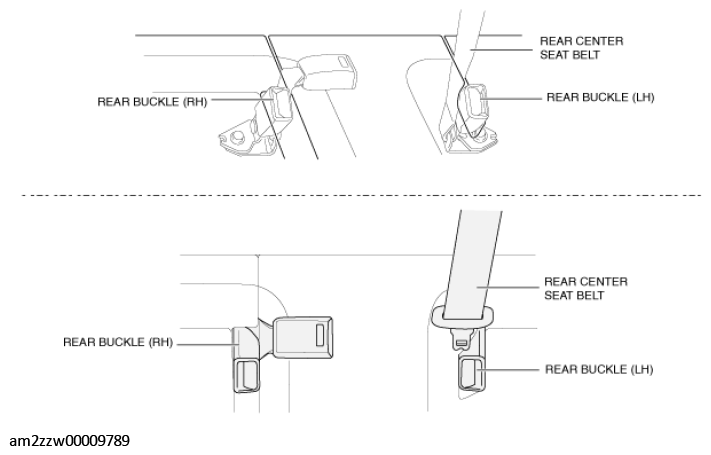

Fig 1: Placing Rear Buckle (RH) To Rear Center Seat Belt
Courtesy of MAZDA MOTORS CORP.
