Charging Preparation
- Close all the valves of the manifold gauge.
- Close the valve of the refrigerant tank.

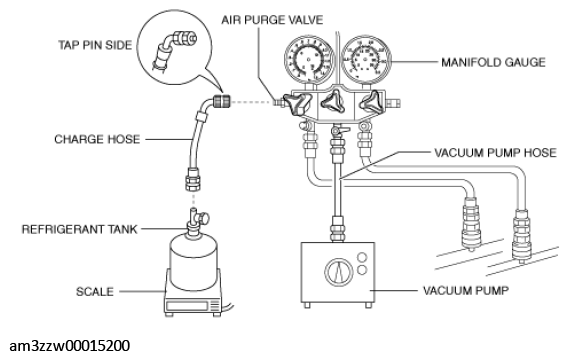

- Install the manifold gauge set. (See REFRIGERANT SYSTEM GENERAL PROCEDURES .)
- Connect the tap pin side of the charging hose to the air purge valve of the manifold gauge.
- Connect the vacuum pump hose to the center joint of the manifold gauge.
- Connect the vacuum pump hose to the vacuum pump.
- Connect the charging hose to the refrigerant tank.
- Place the refrigerant tank on the scale.
Regular amount of refrigerant (approx. quantity)
395-445g {14.0-15.6oz}
