Blower Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
    CAUTION:
    • If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

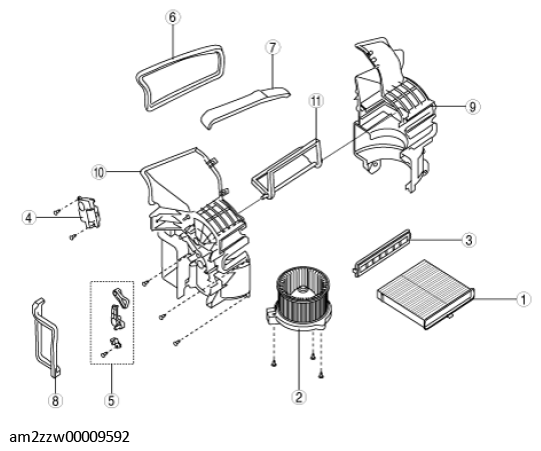

    Fig 1: Exploded View Of Blower Unit
    G11431296Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Air filter
    2 Blower motor
    3 Cover
    4 Air intake actuator (with air intake actuator)
    5 Air intake link (with air intake link)
    6 Polyurethane A
    7 Polyurethane B
    8 Polyurethane C
    9 Blower case A
    10 Blower case B
    11 Air intake door
  2. Assemble in the reverse order of disassembly.
