Using instrument cluster (without center display)

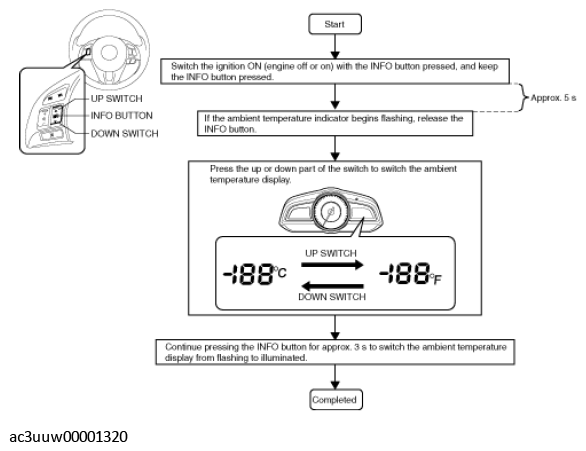

Fig 1: Instrument Cluster Personalization Features Setting Flow Chart

G11434425

Courtesy of MAZDA MOTORS CORP.
